PRODUCT DESCRIPTION

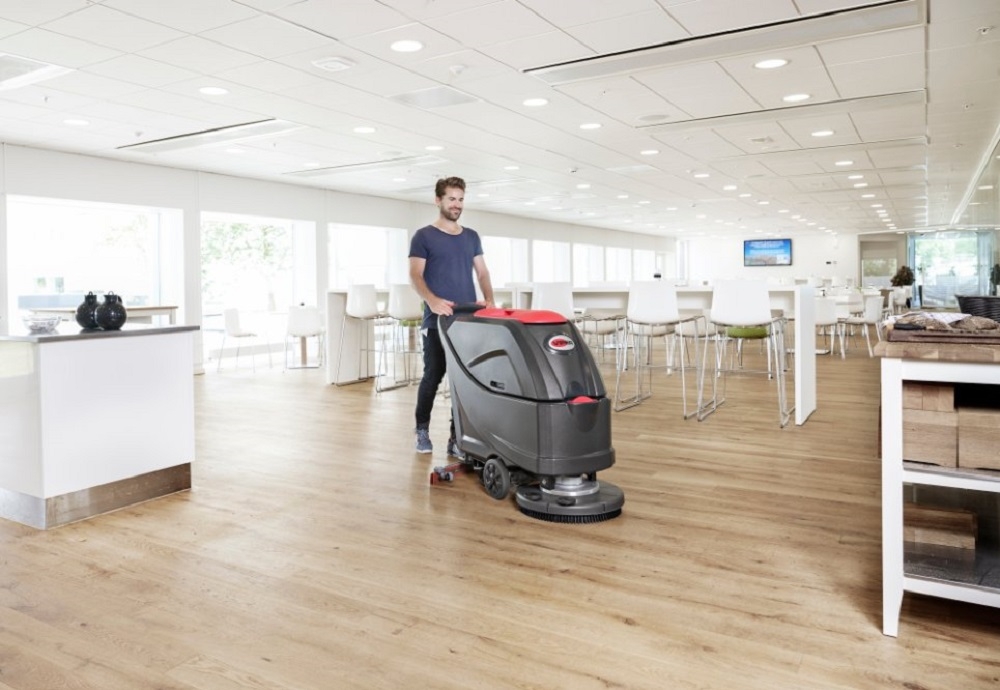

The Viper AS5160 and AS5160T are highly productive walk-behind scrubber dryers with battery endurance and tank capacity to clean for hours. Being easy and comfortable to use with their ergonomic design, these robust machines are ready for an in-depth performance on indoor surfaces. With a working width of 51 cm and a powerful 450 W brush motor, these machines will get the job done with both speed and ease. Especially if you go for the model AS5160 T – for Traction – equippedwith a 150 W drive motor bringing the scrubber dryer forward. Hours of cleaning are ensured by the 61 liter capacity of both water tank and recovery tank – and
the power packed 2x12 Volt batteries.
Features :
- Efficiency: Working width 51 cm
- Brush and pad driver can be installed/UN-installed automatically
- Hour meter: Check how many hours the machine has been running
- High capacity for increased productivity: 61-liter water tank
- / 61-liter recovery tank
- · Robustness and solidness: Steady chassis system and rotation ally molded tanks
- Reliability: Heavy duty 79 cm aluminum squeegee
TECHNICAL SPECIFICATIONS
Specification:
|
Description |
Unit |
AS5160 |
AS5160T |
|
Item no. |
|
50000398 |
50000403 |
|
Solution tank |
liter |
61 |
61 |
|
Recovery tank |
liter |
61 |
61 |
|
Brush/pad diameter |
mm |
510 |
510 |
|
Brush/pad pressure |
kg |
27 |
23 |
|
Squeegee width |
mm |
790 |
790 |
|
Sound pressure level |
dB(A) |
69+/- 3 |
69+/- 3 |
|
Brush speed |
rpm |
150 |
150 |
|
Working speed |
km/h |
0-4.5 |
0-4.5 |
|
Brush motor |
W |
450 |
450 |
|
Vacuum motor power |
W |
350 |
350 |
|
Vacuum |
MMH20 |
1200 |
1200 |
|
Drive motor |
W |
- |
150 |
|
Climbing Capacity |
% |
2 |
2 |
|
Battery type |
|
2x12V 100Ah AGM |
2x12V 100Ah AGM |
|
Battery compartment size (LxWxH) |
mm |
350x350x300 |
350x350x300 |
|
Net weight (empty tanks, with batteries) |
kg |
85 |
93 |
|
Max loading weight |
kg |
214.8 |
222.8 |
|
Length x Width x Height |
mm |
1310x550x1000 |
1310x550x1000 |
